Digital one-dimensional Gauss meter Tesla meter

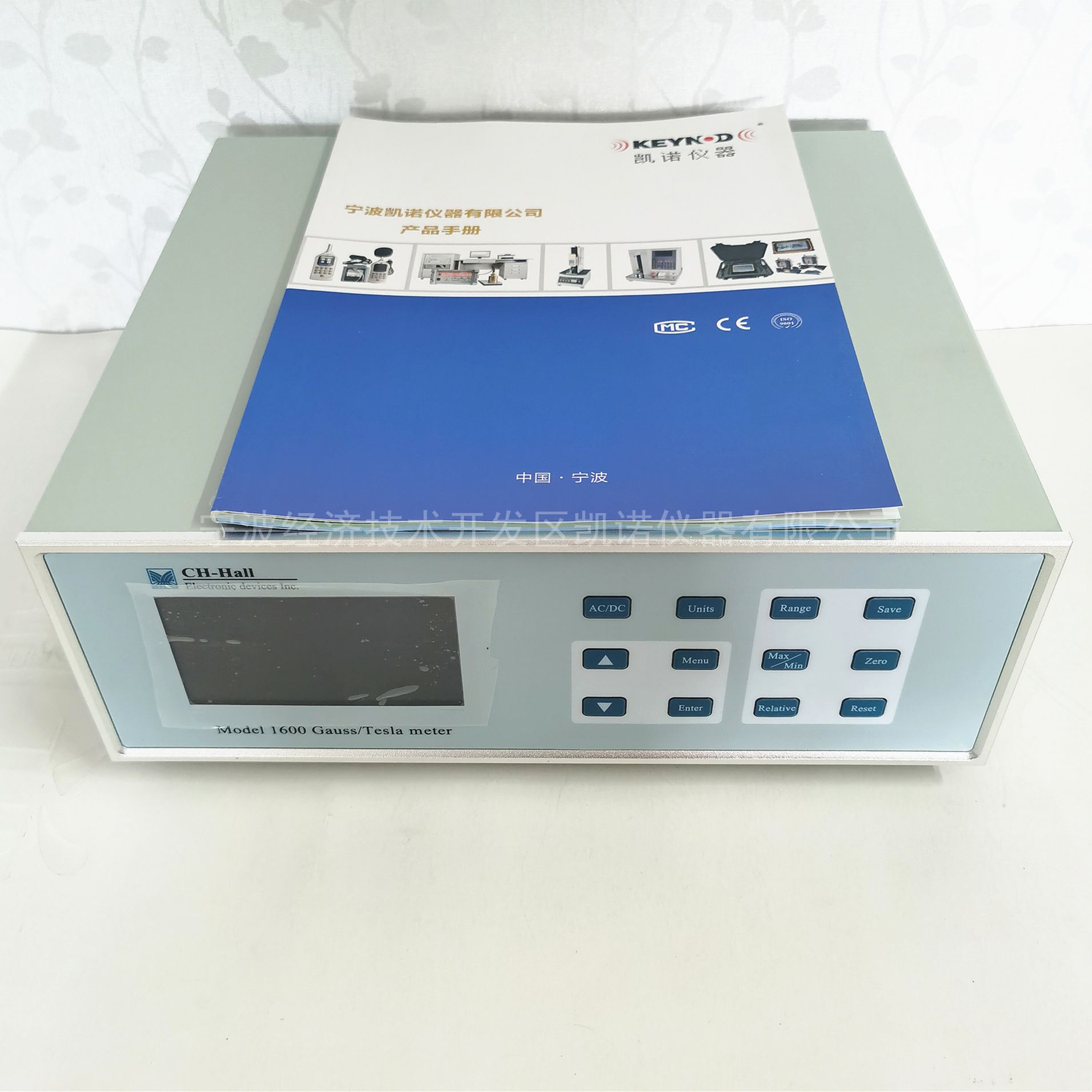

Cuihai CH-1600 Digital 1D Gauss Tesla Meter Gauss Tesla

CH-1600 is a high-precision, high-resolution magnetic performance measurement equipment for AC and DC dual-use, measuring AC magnetic field from DC to 50KHZ, integrating test, storage and communication automation.

I. Cuihai CH-1600 Digital One-dimensional Gaussian Tesla Meter Main Features:
(1) High precision and high resolution
CH-1600 Gauss meter adopts the design of combining high-precision digital instrument with high-precision digital Hall probe, so that its accuracy reaches the basic accuracy: 0.20% 0.05% range of reading, basic resolution 0.00001mT.
(2) High intelligence and multifunction
CH-1600 Gauss meter can measure DC and AC magnetic field, high/low/peak/valley hold/interface lock, data storage (automatic/manual)/data reading, excellent self-plotting and test graphic display function, probe automatic calibration/host automatic memory operation mode, automatic zero, automatic, manual range, threshold setting and alarm, time and brightness self-setting, display unit can choose Gauss, Tesla, A/M or Oe and many other intelligent functions.
(3) Multi-interface and high automation
CH-1600 Gauss meter has rich interface characteristics, suitable for automatic measurement system. RS-232C interface function: test data digital output. Users can use the computer to read test data, and use the brick industry supporting drawing software to draw various measurement charts, can send and print charts; use the serial port real-time transmission function to monitor real-time data on the computer side; can use the fixed instruction set to query real-time data BNC analog data output: output 0-3V analog signal, can be installed with various industrial control interfaces.
(4) High consistency and stable magnetic field
CH-1600 Gauss meter has high stability and high consistency, and the consistency can reach 0.1%(stable magnetic field).
(5) High-precision probe: arbitrary replacement
CH-1600 Gauss meter is equipped with Ch-Hall/CH-MagTech full series of one-dimensional transverse and axial probes. Probes are calibrated before shipment and calibration information is stored in digital probes, so different probes are completely interchangeable, allowing you to replace (Ch-Hall/CH-MagTech) probes anywhere in the world. Ningbo Kainuo CH-1600 Gauss meter standard probe real shot diagram:

II. Technical parameters of Cuihai CH-1600 digital one-dimensional Gaussian Tesla meter:

Third, Cuihai CH-1600 digital one-dimensional Gaussian Tesla meter supporting software function introduction:
1. Automatic data storage function: drawing software can automatically store data into the software database, which is conducive to querying at any time.
2. Selected data plotting coordinates can be selected according to the data range: in order to accurately plot the detection graph, the Y axis and X axis of the plotting software can be set at will, Y is defined as: magnetic field strength value (mT) millitex, X axis is defined as: data coordinate axis. You can set the scale of Y axis according to the range of measurement data, so that the graphics you draw are clearer, the drawing resolution is higher, the unique drawing concept and the more convenient drawing mode make the magnetic measurement data more intuitive. At the same time, it can draw three-dimensional graphics according to needs.
3. Database viewing: Drawing software supports database viewing for Access2003 and Excel2003 series versions.

4. Chart printing functions.
